Quantities 1-9 boxes are discounted 11%, visible in the cart, freight not included.
10+ boxes are as priced with free shipping. View tab for more discounts.
PART NUMBER
DIMENSIONS (WxL)
QUANTITY/BOX
36P
3x30'
1 baffle/box
$75.00Original price was: $75.00.$60.00Current price is: $60.00.Add to cart
1mP
1x8m
1 baffle/box
$80.00Original price was: $80.00.$75.00Current price is: $75.00.Add to cart
2060P
20x60"
5 baffles/box
$75.00Original price was: $75.00.$70.00Current price is: $70.00.Add to cart
20P
20x20"
28 baffles/box
$70.00Original price was: $70.00.$65.00Current price is: $65.00.Add to cart
25P
20x25"
24 baffles/box
$75.00Original price was: $75.00.$70.00Current price is: $70.00.Add to cart
*The 2060P may become back-ordered until the next scheduled production run if less than a skid. A minimum one skid order is required per run for most custom poly products. Check with us for current availability and/or minimum requirement.
“Accordion style, poly-back spray booth filters are the most economical combination of two-stage efficiency and capacity of any filter on the market.”
The Accordion is designed to capture airborne liquid particulates using the principle of inertial separation. The Poly-Back Baffle is best used with air dried liquid coatings such as enamels, primers, urethanes, and other flash dry coatings with fine particle size characteristics. The Accordion Poly-Back also serves as an excellent first and second stage pre-filter to any final stage media. The Accordion paint arrestor can be fitted for use in any exhaust frame opening.
RECOMMENDED AIR VELOCITY:49-197 fpm (0.25-1.00 m/s), subject to spray operation RECOMMENDED MAXIMUM PRESSURE DROP:0.5 to >1 inch wc (128 to >256 pa), subject to fan motor
PRESSURE DROP 0.1 inch wc (12 pa) @ 100 fpm (0.50 m/s) 0.15 inch wc (30 pa) @ 150 fpm (0.75 m/s) 0.25 inch wc (55 pa) @ 200 fpm (1.00 m/s)
Optimal stretch is 8 pleats per foot

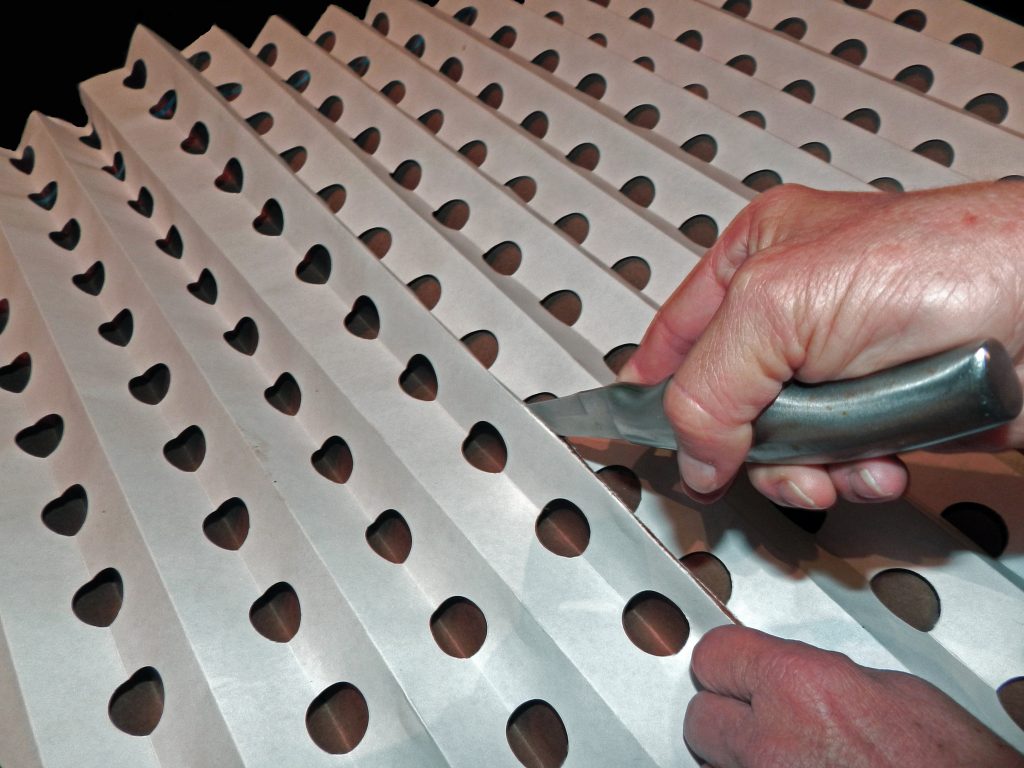

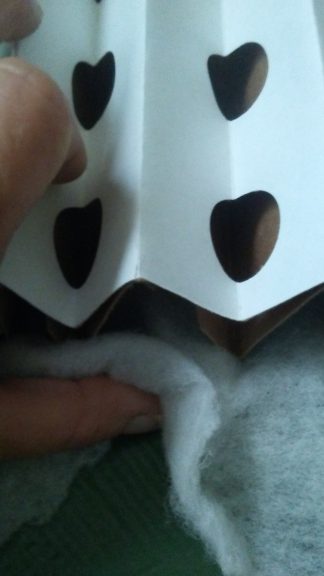

Cut to length: count 1 red mark per foot of exhaust opening
Standard stock sizes: 3×30′, 1x8m, 20×20″, 20×25″, 20″x5′
Custom sizes available as special order (default 2 week lead time and possible minimum)
*Note that pad size baffles can be turned either direction in the cell frame. It was common for older Binks Booths to have 25″ tall openings. A custom size is not needed. Simply turn the filter to fit the cell. Use wire supports to hold the filter open.
“The Accordion is not only Made in the USA, but 100% American Owned & Operated. AFX Manufacturing is proud to produce the ONLY accordion overspray collection filter made in America.”
Ships manufacturer direct in 1-5 business days (may ship same day). Custom sizes may require up to 2 weeks lead.
The Accordion Poly-Back Baffle
$60.00 – $75.00
Replace Binks, Andreae, Chemco and Compleat accordion style high efficiency filters with the only American made accordion overspray collector.
Description
Quantities 1-9 boxes are discounted 11%, visible in the cart, freight not included.
10+ boxes are as priced with free shipping. View tab for more discounts.
$75.00Original price was: $75.00.$60.00Current price is: $60.00.Add to cart$80.00Original price was: $80.00.$75.00Current price is: $75.00.Add to cart$75.00Original price was: $75.00.$70.00Current price is: $70.00.Add to cart$70.00Original price was: $70.00.$65.00Current price is: $65.00.Add to cart$75.00Original price was: $75.00.$70.00Current price is: $70.00.Add to cart*The 2060P may become back-ordered until the next scheduled production run if less than a skid. A minimum one skid order is required per run for most custom poly products. Check with us for current availability and/or minimum requirement.
The Accordion is designed to capture airborne liquid particulates using the principle of inertial separation. The Poly-Back Baffle is best used with air dried liquid coatings such as enamels, primers, urethanes, and other flash dry coatings with fine particle size characteristics. The Accordion Poly-Back also serves as an excellent first and second stage pre-filter to any final stage media. The Accordion paint arrestor can be fitted for use in any exhaust frame opening.
RECOMMENDED AIR VELOCITY: 49-197 fpm (0.25-1.00 m/s), subject to spray operation
RECOMMENDED MAXIMUM PRESSURE DROP: 0.5 to >1 inch wc (128 to >256 pa), subject to fan motor
PRESSURE DROP
0.1 inch wc (12 pa) @ 100 fpm (0.50 m/s)
0.15 inch wc (30 pa) @ 150 fpm (0.75 m/s)
0.25 inch wc (55 pa) @ 200 fpm (1.00 m/s)
Cross-References: 29-356, 29-359, AF113, AF213, AF413, AF813, PAF100, PAF2020, PAF2025, PAF90
*Note that pad size baffles can be turned either direction in the cell frame. It was common for older Binks Booths to have 25″ tall openings. A custom size is not needed. Simply turn the filter to fit the cell. Use wire supports to hold the filter open.
Ships manufacturer direct in 1-5 business days (may ship same day). Custom sizes may require up to 2 weeks lead.
Accordion Technical Data
Accordion Baffle Test Reports
accordion-installation-instructions
View The Accordion Tech Page
Request a quote for skid quantities. We’ll cut you a deal!
The manufacturer no longer offers free shipping for quantities less than 10 boxes.
Quantities 1-9 boxes do not include freight.
This quantity has an automatic 11% freight discount in the cart.
Quantities 10+ boxes ship free.
