Name: The Accordion Standard Baffle
SKU: 12307

Description

Accordion style spray booth filters provide the most economical combination of efficiency and capacity of any filter on the market.
The Standard Baffle is best used with slow drying coatings such as high solid enamels, epoxies, asphalts, varnish and other tacky coatings with larger particle size characteristics. Cross-References: 29-356, 29-359, AF113, AF213, AF413, AF813, PAF100, PAF2020, PAF2025, PAF90

Change quantity in cart to see discounts up to 1/2 skid. For greater quantities, request a quote and send us your order to receive a secure electronic invoice with payment options.
Request Quote

Part	1 box	2 box	4 box	6 box	10 box	18 box
36S: 36"x30', 1/bx, 60 bxs/skd	65.00	63.05	61.10	58.50	55.25	52.00	$65.00Add to cart
1mS: 1x10m, 1/ bx, 60 bxs/skd	80.00	77.60	75.20	72.00	68.00	64.00	$80.00Add to cart
20S: 20x20", 40/bx, 52 bxs/skd	70.00	67.90	65.80	63.00	59.50	56.00	$70.00Add to cart
25S: 20x25", 34/bx, 52 bxs/skd	75.00	72.75	70.50	67.50	63.75	60.00	$75.00Add to cart

Custom Sizes

PART	1 box	2 box	4 box	6 box	10 box	18 box
17.625S: 17.625"x30', 2/bx, 60 bxs/skd	75.00	72.75	70.50	67.50	63.75	60.00	$75.00Add to cart
18S: 18"x30', 2/bx, 60 bxs/skd	75.00	72.75	70.50	67.50	63.75	60.00	$75.00Add to cart
19.75S: 19.75"x30', 1/bx, 60 bxs/skd	75.00	72.75	70.50	67.50	63.75	60.00	$75.00Add to cart
22.5S: 22.5"x30', 1/bx, 60 bxs/skd	75.00	72.75	70.50	67.50	63.75	60.00	$75.00Add to cart
26.25S: 26.25"x30', 1/bx, 60 bxs/skd	78.00	75.66	73.32	70.20	66.30	62.40	$78.00Add to cart
27S: 27"x30', 1/bx, 60 bxs/skd	78.00	75.66	73.32	70.20	66.30	62.40	$78.00Add to cart
27.5S: 27.5"x30', 1/bx, 60 bxs/skd	78.00	75.66	73.32	70.20	66.30	62.40	$78.00Add to cart
27.75S: 27.75"x30', 1/bx, 60 bxs/skd	78.00	75.66	73.32	70.20	66.30	62.40	$78.00Add to cart
2972S: 29"x72", 5/bx, 60 bxs/skd	75.00	72.75	70.50	67.50	63.75	60.00	$75.00Add to cart
30S: 30"x30', 1/bx, 60 bxs/skd	75.00	72.75	70.50	67.50	63.75	60.00	$75.00Add to cart
38572S: 38.5"x72", 5/bx, 60 bxs/skd	78.00	75.66	73.32	70.20	66.30	62.40	$78.00Add to cart

Standard filters are available in most any size. If you need a size not shown, contact us for a quote. Lead time for all custom sizes is 2 weeks by default (but may ship sooner). Some custom sizes may require a minimum order.

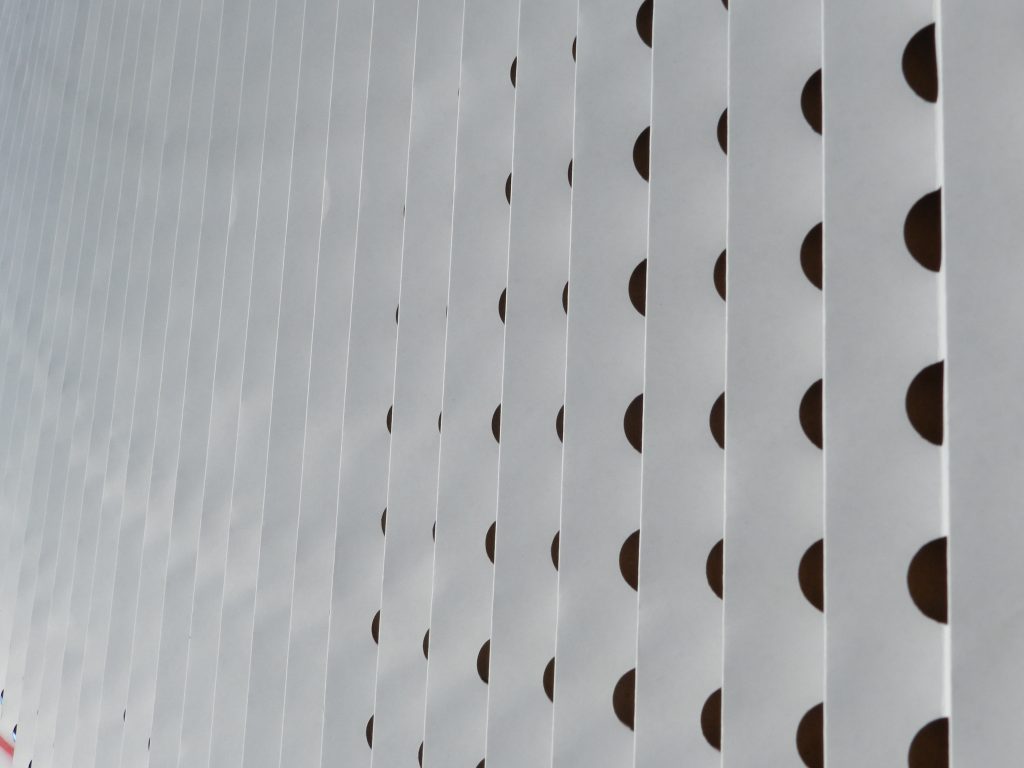

Optimal stretch is 8 pleats per foot
Cut to length: count 1 red mark per foot of exhaust opening
Standard stock sizes: 3×30′, 1x10m, 20×20″, 25×20″
Custom sizes available as special order (default 2 week lead time)

RECOMMENDED AIR VELOCITY: 49-197 fpm (0.25-1.00 m/s), subject to spray operation
RECOMMENDED MAXIMUM PRESSURE DROP: 0.5 to >1 inch wc (128 to >256 pa), subject to fan motor

PRESSURE DROP
0.05 inch wc (12 pa) @ 100 fpm (0.50 m/s)
0.12 inch wc (30 pa) @ 150 fpm (0.75 m/s)
0.22 inch wc (55 pa) @ 200 fpm (1.00 m/s)

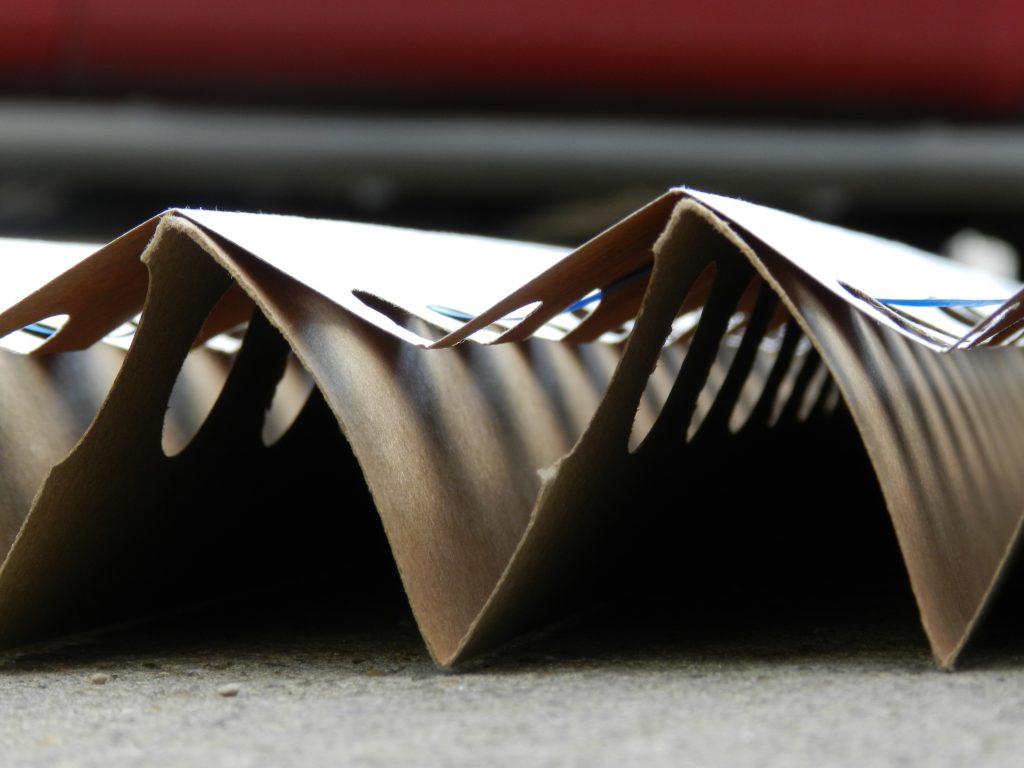

The Accordion is designed to capture airborne liquid particulates using the principle of inertial separation. The Accordion also serves as an excellent pre-filter to any second stage media. The Accordion paint arrestor can be fitted for use in any exhaust with channel or cell frame opening.

“The Accordion is not only Made in the USA, but 100% American Owned & Operated. AFX Manufacturing is proud to produce the ONLY accordion overspray collection filter made in America.”

Ships manufacturer direct in 1-5 days. 1m and 36″ sizes typically ship same or next day. Pad sizes may require up to 5 days. Custom sizes may require up to 2 weeks lead (and a minimum).

Plan ahead and ask us about current lead time! Get Current Lead

Accordion Technical Data

Accordion Baffle Test Reports

accordion-installation-instructions

Visit Accordion Tech Page
