The Accordion
An economical choice for high-volume spray environments, The Accordion baffle lasts up to 5x longer than polyester and fiberglass. The Accordion is available in single-stage and two-stage configurations for a wide capture array. With >98-99% paint arrestance efficiency, The Accordion is the better baffle for liquid spray finishing.
Technical Specifications
The Accordion captures overspray through impaction by the process of inertial separation (and secondary straining in the Poly-Back).
- Recommended Air Velocity: 49-197 fpm, subject to spray operation
- Recommended Max Pressure Drop: 0.5 – >1 inch w.c., subject to fan motor
The Standard
The Accordion now requires a 10 box minimum order.
You may mix accordion styles and sizes (custom sizes excluded) to meet the 10 box minimum. Contact us to place a mixed order.
| PART NUMBER | DIMENSIONS (WxL) | BOX QUANTITY | SKID QUANTITY | |
|---|---|---|---|---|
| 36S | 36"x30' | 1 baffle/box | 60 boxes | Original price was: $60.00.$58.00Current price is: $58.00.Add to cart |
| 1mS | 1x10m | 1 baffle/box | 60 boxes | Original price was: $70.00.$66.00Current price is: $66.00.Add to cart |
| 20S | 20x20" | 40 baffles/box | 52 boxes | Original price was: $65.00.$63.00Current price is: $63.00.Add to cart |
| 25S | 20x25" | 34 baffles/box | 52 boxes | Original price was: $70.00.$66.00Current price is: $66.00.Add to cart |
*Note that pad size filters can be turned either direction in the cell opening. If you have a 25″ tall cell opening, turn the 20×25″ so that the pleats run horizontally. Use a wire baffle support to hold the pleats open. Old Binks booths are an example of this kind of cell frame.
The Accordion now requires a 10 box minimum order.
| PART NUMBER | DIMENSIONS (WxL) | QUANTITY/BOX | QUANTITY/SKID | |
|---|---|---|---|---|
| 36P | 3x30' | 1 baffle/box | 56 boxes/skid | Original price was: $75.00.$70.00Current price is: $70.00.Add to cart |
| 1mP | 1x8m | 1 baffle/box | 56 boxes/skid | Original price was: $80.00.$75.00Current price is: $75.00.Add to cart |
| 2060P | 20x60" | 5 baffles/box | 52 boxes/skid | Original price was: $75.00.$70.00Current price is: $70.00.Add to cart |
| 20P | 20x20" | 28 baffles/box | 52 boxes/skid | Original price was: $70.00.$66.00Current price is: $66.00.Add to cart |
| 25P | 20x25" | 24 baffles/box | 52 boxes/skid | Original price was: $72.00.$67.00Current price is: $67.00.Add to cart |

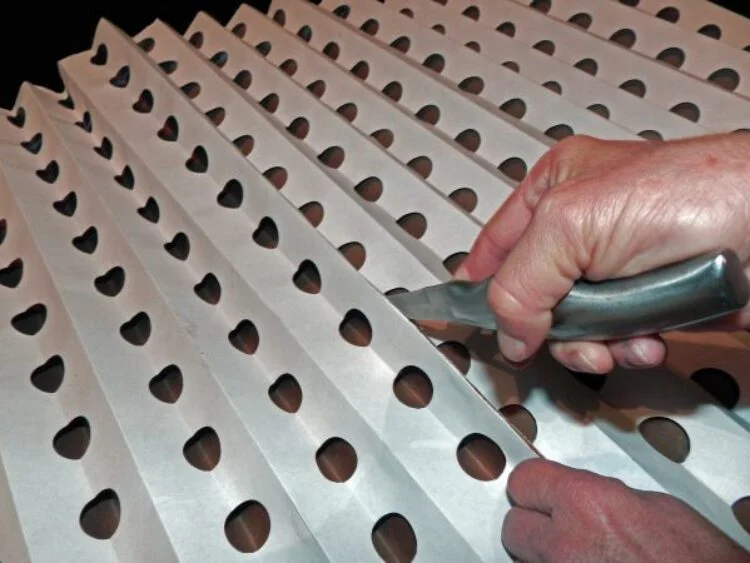

Cut to Length
Custom Sizes
Standard filters are available in most any size. Custom poly-back sizes may not be possible. If you need a size not shown, send us the inside dimensions of your frame (height, length).
Lead time for all custom sizes is 2 weeks by default (but may ship sooner). Some sizes may require a minimum order and/or extended lead (to wait until the next production run – poly customs most impacted).
Note that some part numbers are sized “nominal” vs. “actual”. Click the link to learn which part numbers are “nominal”. If in doubt, send us the inside dimensions of your exhaust frame. The manufacturer will provide the correct part number/size filter.
The Accordion now requires a 10 box minimum order.
| PART | DIMENSIONS (WxL) | BOX QUANTITY | SKID QUANTITY | |
|---|---|---|---|---|
| 17.625S | 17.625"x30' | 2 baffles/box | 60 boxes/skid | $65.00Add to cart |
| 19.625S | 19.625"x30' | 2 baffles/box | 60 boxes/skid | $70.00Add to cart |
| 19.75S | 19.75"x30' | 1 baffle/box | 60 boxes/skid | Original price was: $70.00.$67.00Current price is: $67.00.Add to cart |
| 22.5S | 22.5"x30' | 1 baffle/box | 60 boxes/skid | $63.00Add to cart |
| 26.25S | 26.25"x30' | 1 baffle/box | 60 boxes/skid | $63.00Add to cart |
| 27S | 27"x30' | 1 baffle/box | 60 boxes/skid | $63.00Add to cart |
| 27.5S | 27.5"x30' | 1 baffle/box | 60 boxes/skid | $63.00Add to cart |
| 27.75S | 27.75"x30' | 1 baffle/box | 60 boxes/skid | $63.00Add to cart |
| 2972S | 29"x72" | 5 baffles/box | 60 boxes/skid | $66.00Add to cart |
| 30S | 30"x30' | 1 baffle/box | 60 boxes/skid | Original price was: $63.00.$60.00Current price is: $60.00.Add to cart |
| 38.572S | 38.5"x72" | 5 baffles/box | 60 boxes/skid | Original price was: $75.00.$70.00Current price is: $70.00.Add to cart |
Accordion Baffle Supports

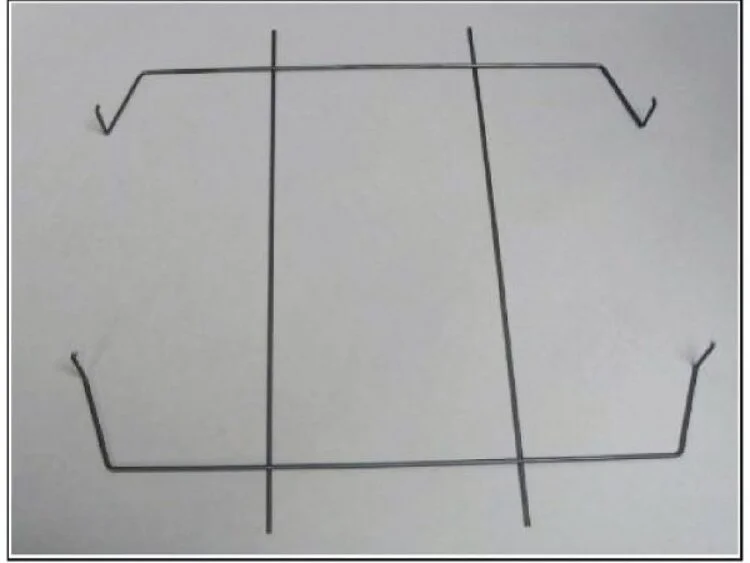

Supports are required for 20×20″ and 20×25″ filters only. This is a simple, one-time installation. View the Installation instructions
| PART NUMBER | SIZE | QUANTITY | PRICE | |
|---|---|---|---|---|
| 20BS | 20x20" | 1 | 6.00 | Freight Quote Required |
| 25BS | 20x25" | 1 | 6.00 | Freight Quote Required |
