Dwyer Series 2000 Magnehelic Gauge

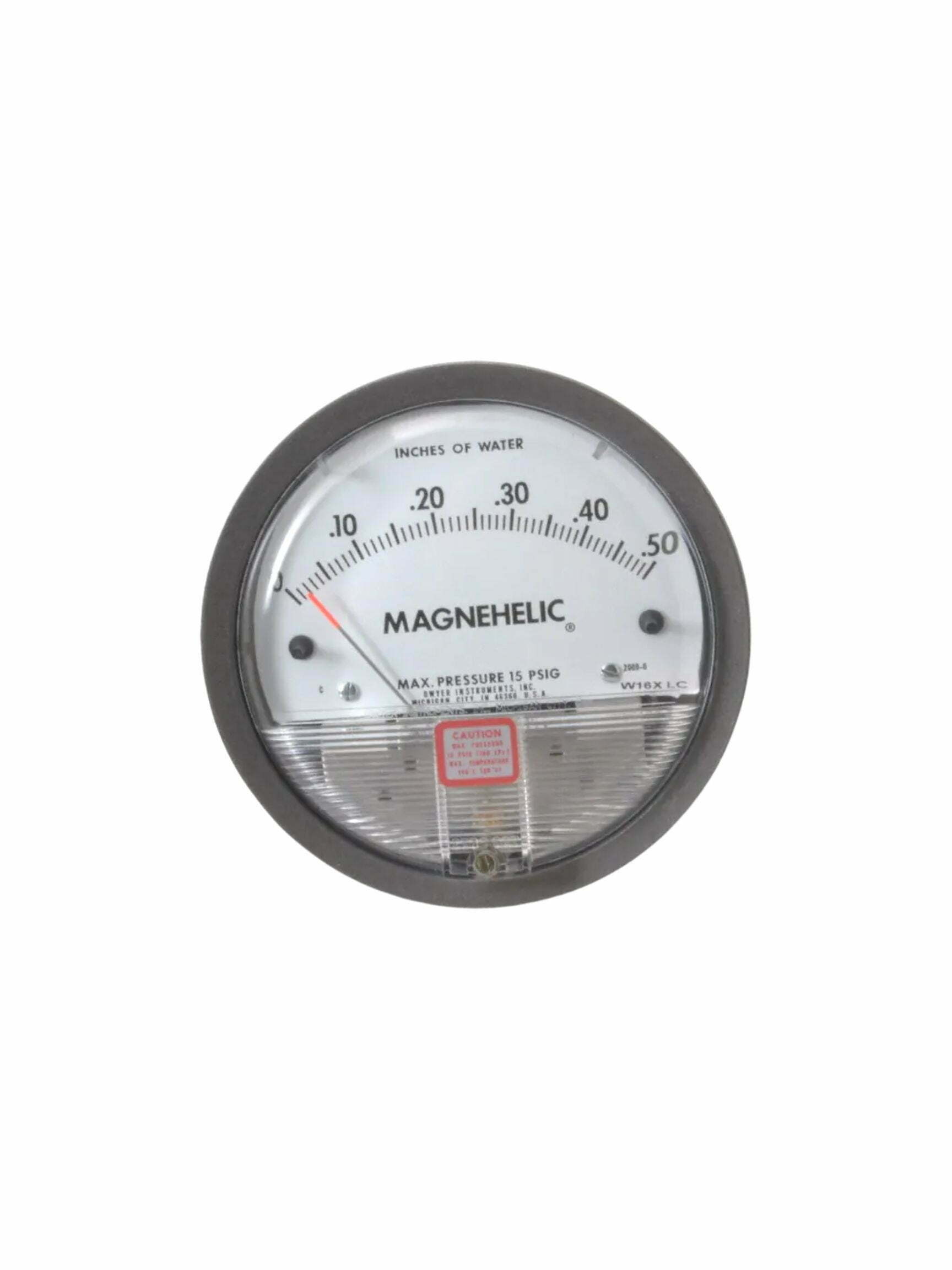

2000-0 Magnehelic Gauge

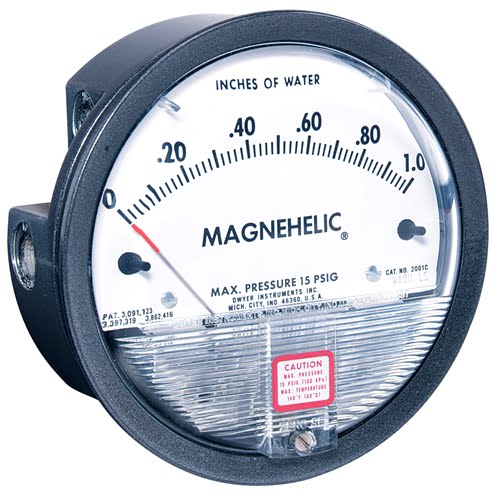

Standard Magnehelic Gage

Dwyer Series 2000 Magnehelic Gauge

Price range: $209.00 through $249.00

Dwyer’s simple, frictionless Magnehelic® gage movement quickly indicates low air or non-corrosive gas pressures:  positive, negative (vacuum), or differential.

Wishlist
SKU: N/A Categories: , , Tags: , Brand:

Description

Dwyer Series 2000 Magnehelic Differential Pressure Gauges must be calibrated prior to use. Simple, frictionless Magnehelic movement quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.

PART NUMBERPRESSURE DIFFERENTIAL
GA-97060.25-0-0.25" w.c.

$249.00Add to cart

2000-00-0.5" w.c.

$229.00Add to cart

242-0380-1.0" w.c.

$209.00Add to cart


  • Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
  • Pressure Limits: -20˝ Hg. to 15 psig.† (-0.677 bar to 1.034)
  • Overpressure: Relief plug opens at approximately 25 psig
  • Connections: 1/8″‘ NPT female high and low-pressure taps duplicated – one pair side and one pair back.
  • Housing: Die-cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168-hour salt spray corrosion test.
  • Size: 4˝ (101.6 mm) diameter dial face.
  • Accuracy: Plus or minus 2% of full scale (3% on – 0 and 4% on – 00 ranges), throughout range at 70F.

GA-9706: 0.25 -0 – 0.25″ w.c.
Model 2300-0, zero center range

242-038:  0 – 1.0″ w.c.
Model 2001, standard



Quantity Discount
2 3%
3 5%
5 10%
10 15%

Your Questions Answered by GFS

GA-9706 dwyer_2300_0_pressure_gauge_datasheet
