Description
Powder & Dust Collectors
Bag Filters
Pocketed filters with individual pocket edges and internal dividing bars that are heat-sealed for no stitch holes. Exceptionally high dust holding capacity provides long life.
| Part Number | Size | Description | Pack Quantity | |
|---|---|---|---|---|

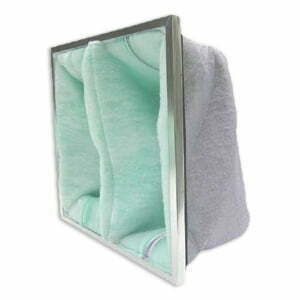

| 216-504 | 20x20x15" | 2 pocket primary filter | 8 pk | Original price was: $830.00.$799.00Current price is: $799.00.Add to cart |

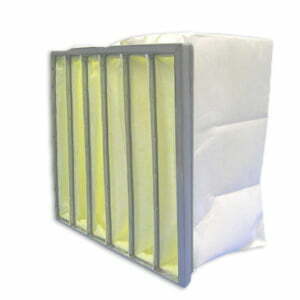

| 216-505 | 20x20x12"` | 6 pocket final filter | 12 pk | Original price was: $1,200.00.$1,100.00Current price is: $1,100.00.Add to cart |
| 216-038 | 24x24x12" | Riga-Flo 200, MERV14, no-header | 1 pk | $539.00Add to cart |
Final Filter
Camfil Riga-Flo box-style air filter is a high-lofted, depth-loading, micro fine glass media with a unique media backing to maintain fiber blanket uniformity and preclude media migration.
*216-038: to ensure equipment compatibility, consult GFS or Camfil prior to order.
Pad/Panel Filters
Farr 30/30 filter is a high capacity, medium efficiency, pleated panel filter that contains up to 16 pleats per linear foot. Radial pleat construction allows minimum pressure. Constructed of synthetic media with true MERV 8 efficiency. Max temperature: 200F.
| Part Number | Size | Description | Notes | Pack Quantity | |
|---|---|---|---|---|---|
| 216-003 | 20x20x4" | pleated panel, Class 2 (CL2), Farr 30/30 high cap | Merv 8 | 6 pk | $342.00Add to cart |
| 216-011 | 20x20x2" | pleated panel, Farr 30/30 high cap | Merv 8, used w/216-202, 216-203, 216-204 | 12 pk | $418.00Add to cart |
| 1068418 | 20x20x4" | pleated panel, Farr AP-Thirteen SC, UL900, 175° max temp | MERV 13, replaces 216-511, used w/216-208 | 6 pk | $894.00Add to cart |
| 216-511 | 20x20x4" | pleated panel | Merv 13, used w/216-208 | 6 pk | REPLACED BY 1068418 |
| 216-013 | 20x25x2" | pleated panel, Farr 30/30 high cap | Merv 8 | 12 pk | $502.00Add to cart |
*AP-Thirteen SC has radial pleats with a welded wire backing for higher dust holding capacity and longer life (MERV 13). Max temperature: 175F. UL900.
Standard pleated filters remove nuisance dusts, lint and contaminants associated with staining, and are primarily designed to protect equipment and act as prefilters. The AP-Thirteen SC can be used as the only filter for special process areas, electrical shops, paint shops, average general offices and laboratories.
Cartridges
For powder recovery booths and safe air dust collection systems.
| Part Number | Size | Description | Notes | Pack Quantity | |
|---|---|---|---|---|---|
| 216-202 | 26"x12-3/4" | dust collection: metal & wood - fire retardant (used w/DCM-SG) | 8" ID O.E.O 26" LG | 1 pk | $279.00Add to cart |
| 216-204 | 26"x12-3/4" | dust collection: fiberglass, laminates & composites (used w/DCM-CO) | 8" ID O.E.O. 26" LG | 1 pk | $269.00Add to cart |
| 216-208 | 52"x12-3/4" | powder collection (used w/PCM), 3 tab twist bracket | 12.75" OD x 8.375" ID x 52" OAL | 1 pk | $479.00Add to cart |
| 216-203 | 26"x12-3/4" | powder collection (used w/PC100) | 8" ID B.E.O. 26" LG | 1 pk | $269.00Add to cart |
