Gauges
Dwyer’s Manometer, Magnehelic® and Photohelic gages quickly indicate the difference between two pressures or a single pressure. Dwyer gages have a clean design, are small in size, and accurate.
Manometers (draft gauges) measure a single pressure or the difference between two pressures. The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings.
Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
1011003 (242-001): neg .05 to 3″ W.C. with Mount Kit

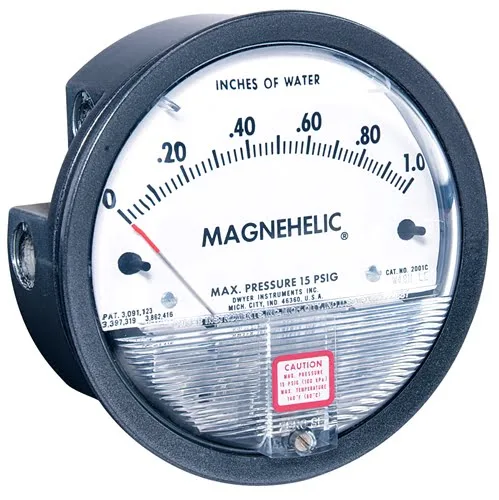

Simple, frictionless Magnehelic movement quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
Pressure Limits: -20˝ Hg. to 15 psig.† (-0.677 bar to 1.034)
Overpressure: Relief plug opens at approximately 25 psig
Connections: 1/8″‘ NPT female high and low-pressure taps duplicated – one pair side and one pair back.
Housing: Die-cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168-hour salt spray corrosion test.
Size: 4˝ (101.6 mm) diameter dial face.
Accuracy: Plus or minus 2% of full scale (3% on – 0 and 4% on – 00 ranges), throughout range at 70F
The Series A3000 Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases.
Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5 bar) psig.
Two phototransistor actuated, DPDT relays are included for low/high limit control.
Easy to adjust set point indicators are controlled by knobs located on the gage face.
Individual set point deadband is one pointer width – less than 1% of full scale.
Set points can be interlocked to provide variable deadband – ideal for control of fans, dampers, etc.
Gage reading is continuous and unaffected by switch operation, even during loss of electrical power.
1011054 (242-179): Range 0.5-0-0.5″ w.c., pressure switch/gage (Dwyer A3301)
$1,259.00Original price was: $1,259.00.$1,059.00Current price is: $1,059.00.Add to cart

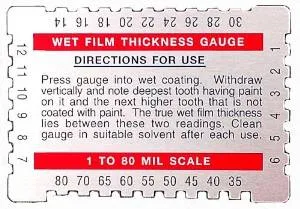

Card style, dual scale wet film gauge is for measuring film thickness of wet coatings to include paints, enamels, lacquers, adhesives & many other wet coatings that are sprayed, dipped or brushed on a smooth surface.
Red Gauge Fluid, .826 sp. gr., is the standard fluid for use in inclined manometers, “D” type vertical manometers and all Dwyer gauges using red fluid. Gauge fluids in the 0.75 ounce size are furnished in unbreakable plastic dispenser type bottles.
Use with differential pressure gages or switches to measure the resistance of air flow through filters. The air filter kit is an accessory package for using switch without a gage. Includes two pressure tips with integral compression fittings, two 5′ lengths of 1/4″ aluminum tubing & two 1/8″ NPT to 1/4″ tubing compression fittings.
Manometers (draft gauges) measure a single pressure or the difference between two pressures. The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings.
Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
1011003 (242-001): neg .05 to 3″ W.C. with Mount Kit
Simple, frictionless Magnehelic movement quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
Pressure Limits: -20˝ Hg. to 15 psig.† (-0.677 bar to 1.034)
Overpressure: Relief plug opens at approximately 25 psig
Connections: 1/8″‘ NPT female high and low-pressure taps duplicated – one pair side and one pair back.
Housing: Die-cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168-hour salt spray corrosion test.
Size: 4˝ (101.6 mm) diameter dial face.
Accuracy: Plus or minus 2% of full scale (3% on – 0 and 4% on – 00 ranges), throughout range at 70F
The Series A3000 Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases.
Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5 bar) psig.
Two phototransistor actuated, DPDT relays are included for low/high limit control.
Easy to adjust set point indicators are controlled by knobs located on the gage face.
Individual set point deadband is one pointer width – less than 1% of full scale.
Set points can be interlocked to provide variable deadband – ideal for control of fans, dampers, etc.
Gage reading is continuous and unaffected by switch operation, even during loss of electrical power.
1011054 (242-179): Range 0.5-0-0.5″ w.c., pressure switch/gage (Dwyer A3301)
$1,259.00Original price was: $1,259.00.$1,059.00Current price is: $1,059.00.Add to cart
Card style, dual scale wet film gauge is for measuring film thickness of wet coatings to include paints, enamels, lacquers, adhesives & many other wet coatings that are sprayed, dipped or brushed on a smooth surface.
Red Gauge Fluid, .826 sp. gr., is the standard fluid for use in inclined manometers, “D” type vertical manometers and all Dwyer gauges using red fluid. Gauge fluids in the 0.75 ounce size are furnished in unbreakable plastic dispenser type bottles.
Use with differential pressure gages or switches to measure the resistance of air flow through filters. The air filter kit is an accessory package for using switch without a gage. Includes two pressure tips with integral compression fittings, two 5′ lengths of 1/4″ aluminum tubing & two 1/8″ NPT to 1/4″ tubing compression fittings.
Manometers (draft gauges) measure a single pressure or the difference between two pressures. The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings.
Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
1011003 (242-001): neg .05 to 3″ W.C. with Mount Kit
Simple, frictionless Magnehelic movement quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
Pressure Limits: -20˝ Hg. to 15 psig.† (-0.677 bar to 1.034)
Overpressure: Relief plug opens at approximately 25 psig
Connections: 1/8″‘ NPT female high and low-pressure taps duplicated – one pair side and one pair back.
Housing: Die-cast aluminum case and bezel, with acrylic cover. Exterior finish is coated gray to withstand 168-hour salt spray corrosion test.
Size: 4˝ (101.6 mm) diameter dial face.
Accuracy: Plus or minus 2% of full scale (3% on – 0 and 4% on – 00 ranges), throughout range at 70F
The Series A3000 Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases.
Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5 bar) psig.
Two phototransistor actuated, DPDT relays are included for low/high limit control.
Easy to adjust set point indicators are controlled by knobs located on the gage face.
Individual set point deadband is one pointer width – less than 1% of full scale.
Set points can be interlocked to provide variable deadband – ideal for control of fans, dampers, etc.
Gage reading is continuous and unaffected by switch operation, even during loss of electrical power.
1011054 (242-179): Range 0.5-0-0.5″ w.c., pressure switch/gage (Dwyer A3301)
$1,259.00Original price was: $1,259.00.$1,059.00Current price is: $1,059.00.Add to cart
Card style, dual scale wet film gauge is for measuring film thickness of wet coatings to include paints, enamels, lacquers, adhesives & many other wet coatings that are sprayed, dipped or brushed on a smooth surface.
Red Gauge Fluid, .826 sp. gr., is the standard fluid for use in inclined manometers, “D” type vertical manometers and all Dwyer gauges using red fluid. Gauge fluids in the 0.75 ounce size are furnished in unbreakable plastic dispenser type bottles.
Use with differential pressure gages or switches to measure the resistance of air flow through filters. The air filter kit is an accessory package for using switch without a gage. Includes two pressure tips with integral compression fittings, two 5′ lengths of 1/4″ aluminum tubing & two 1/8″ NPT to 1/4″ tubing compression fittings.
Gauges
Dwyer’s Manometer, Magnehelic® and Photohelic gages quickly indicate the difference between two pressures or a single pressure. Dwyer gages have a clean design, are small in size, and accurate.
Description
Known for quality, reliability and accuracy, Dwyer designs and manufactures a full-line of controllers, data loggers, gages, manometers, and more.
Manometers (draft gauges) measure a single pressure or the difference between two pressures. The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings.
Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
1011003 (242-001): neg .05 to 3″ W.C. with Mount Kit
$149.00Add to cart
Simple, frictionless Magnehelic movement quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
1011019 (242-038): Range 0-1
$209.00Add to cart
1011912 (2000-0): Range 0 – 0.5″ W.C. w/ Mount Kit
$229.00Add to cart
1007782 (GA-9706): Range 0.25 – 0 – 0.25″ W.C. w/ Mount Kit
$249.00Add to cart
The Series A3000 Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases.
1011054 (242-179): Range 0.5-0-0.5″ w.c., pressure switch/gage (Dwyer A3301)
$1,259.00Original price was: $1,259.00.$1,059.00Current price is: $1,059.00.Add to cartCard style, dual scale wet film gauge is for measuring film thickness of wet coatings to include paints, enamels, lacquers, adhesives & many other wet coatings that are sprayed, dipped or brushed on a smooth surface.
WFG: dual scale (25-2000 micron scale, 1-80 mil scale) 5 PACK
$45.00Original price was: $45.00.$25.00Current price is: $25.00.Add to cartRed Gauge Fluid, .826 sp. gr., is the standard fluid for use in inclined manometers, “D” type vertical manometers and all Dwyer gauges using red fluid. Gauge fluids in the 0.75 ounce size are furnished in unbreakable plastic dispenser type bottles.
1011049 (242-166): red gauge oil 0.75 ounce
$40.00Add to cart
Use with differential pressure gages or switches to measure the resistance of air flow through filters. The air filter kit is an accessory package for using switch without a gage. Includes two pressure tips with integral compression fittings, two 5′ lengths of 1/4″ aluminum tubing & two 1/8″ NPT to 1/4″ tubing compression fittings.
1011005 (242-003): Dwyer A-602 Air Filter Kit
$109.00Add to cart
Manometer: Operating Instructions
Known for quality, reliability and accuracy, Dwyer designs and manufactures a full-line of controllers, data loggers, gages, manometers, and more.
Manometers (draft gauges) measure a single pressure or the difference between two pressures. The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings.
Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
1011003 (242-001): neg .05 to 3″ W.C. with Mount Kit
$149.00Add to cart
Simple, frictionless Magnehelic movement quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
1011019 (242-038): Range 0-1
$209.00Add to cart
1011912 (2000-0): Range 0 – 0.5″ W.C. w/ Mount Kit
$229.00Add to cart
1007782 (GA-9706): Range 0.25 – 0 – 0.25″ W.C. w/ Mount Kit
$249.00Add to cart
The Series A3000 Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases.
1011054 (242-179): Range 0.5-0-0.5″ w.c., pressure switch/gage (Dwyer A3301)
$1,259.00Original price was: $1,259.00.$1,059.00Current price is: $1,059.00.Add to cartCard style, dual scale wet film gauge is for measuring film thickness of wet coatings to include paints, enamels, lacquers, adhesives & many other wet coatings that are sprayed, dipped or brushed on a smooth surface.
WFG: dual scale (25-2000 micron scale, 1-80 mil scale) 5 PACK
$45.00Original price was: $45.00.$25.00Current price is: $25.00.Add to cartRed Gauge Fluid, .826 sp. gr., is the standard fluid for use in inclined manometers, “D” type vertical manometers and all Dwyer gauges using red fluid. Gauge fluids in the 0.75 ounce size are furnished in unbreakable plastic dispenser type bottles.
1011049 (242-166): red gauge oil 0.75 ounce
$40.00Add to cart
Use with differential pressure gages or switches to measure the resistance of air flow through filters. The air filter kit is an accessory package for using switch without a gage. Includes two pressure tips with integral compression fittings, two 5′ lengths of 1/4″ aluminum tubing & two 1/8″ NPT to 1/4″ tubing compression fittings.
1011005 (242-003): Dwyer A-602 Air Filter Kit
$109.00Add to cart
Ships GFS direct, Best Way Ground.
Lead time is 3-5 business days.
Known for quality, reliability and accuracy, Dwyer designs and manufactures a full-line of controllers, data loggers, gages, manometers, and more.
Manometers (draft gauges) measure a single pressure or the difference between two pressures. The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings.
Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
1011003 (242-001): neg .05 to 3″ W.C. with Mount Kit
$149.00Add to cart
Simple, frictionless Magnehelic movement quickly indicates low air or non-corrosive gas pressures either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
1011019 (242-038): Range 0-1
$209.00Add to cart
1011912 (2000-0): Range 0 – 0.5″ W.C. w/ Mount Kit
$229.00Add to cart
1007782 (GA-9706): Range 0.25 – 0 – 0.25″ W.C. w/ Mount Kit
$249.00Add to cart
The Series A3000 Photohelic® Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic® gage design. The Photohelic® switch/gage measures and controls positive, negative or differential pressures of air and compatible gases.
1011054 (242-179): Range 0.5-0-0.5″ w.c., pressure switch/gage (Dwyer A3301)
$1,259.00Original price was: $1,259.00.$1,059.00Current price is: $1,059.00.Add to cartCard style, dual scale wet film gauge is for measuring film thickness of wet coatings to include paints, enamels, lacquers, adhesives & many other wet coatings that are sprayed, dipped or brushed on a smooth surface.
WFG: dual scale (25-2000 micron scale, 1-80 mil scale) 5 PACK
$45.00Original price was: $45.00.$25.00Current price is: $25.00.Add to cartRed Gauge Fluid, .826 sp. gr., is the standard fluid for use in inclined manometers, “D” type vertical manometers and all Dwyer gauges using red fluid. Gauge fluids in the 0.75 ounce size are furnished in unbreakable plastic dispenser type bottles.
1011049 (242-166): red gauge oil 0.75 ounce
$40.00Add to cart
Use with differential pressure gages or switches to measure the resistance of air flow through filters. The air filter kit is an accessory package for using switch without a gage. Includes two pressure tips with integral compression fittings, two 5′ lengths of 1/4″ aluminum tubing & two 1/8″ NPT to 1/4″ tubing compression fittings.
1011005 (242-003): Dwyer A-602 Air Filter Kit
$109.00Add to cart
