The Accordion Paint Baffle
Technical Specifications:
The Accordion paint baffle captures liquid overspray through impaction by the process of inertial separation and, in the Poly-Back, further filters through secondary straining.
- Recommended Air Velocity: 49-197 fpm, subject to spray operation
- Recommended Max Pressure Drop: 0.5 – >1 inch w.c., subject to fan motor
Quantities 1-9 boxes: freight not included. A 10% freight discount is applied in cart.
Quantities 10+ boxes: SHIP FREE!

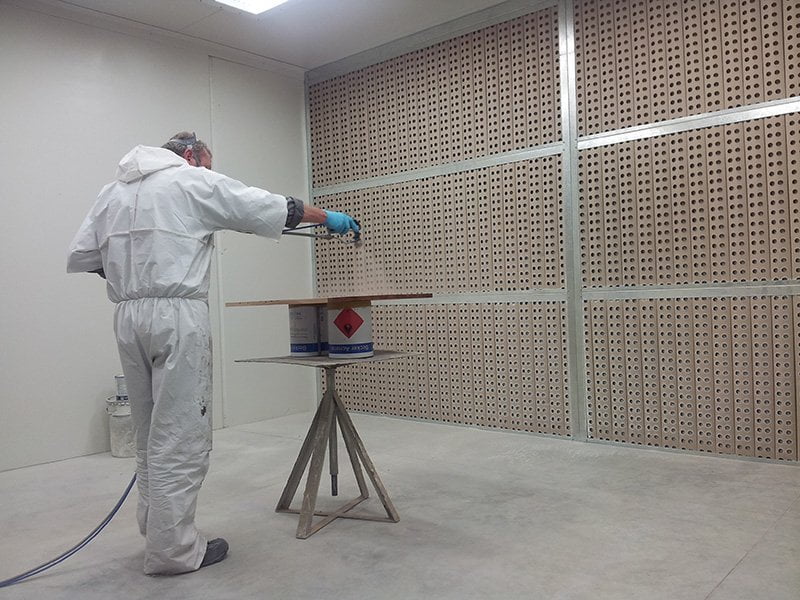

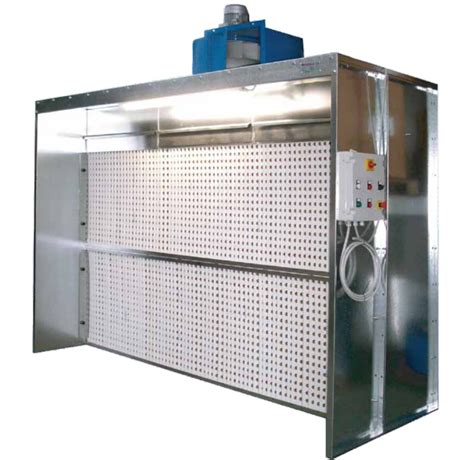

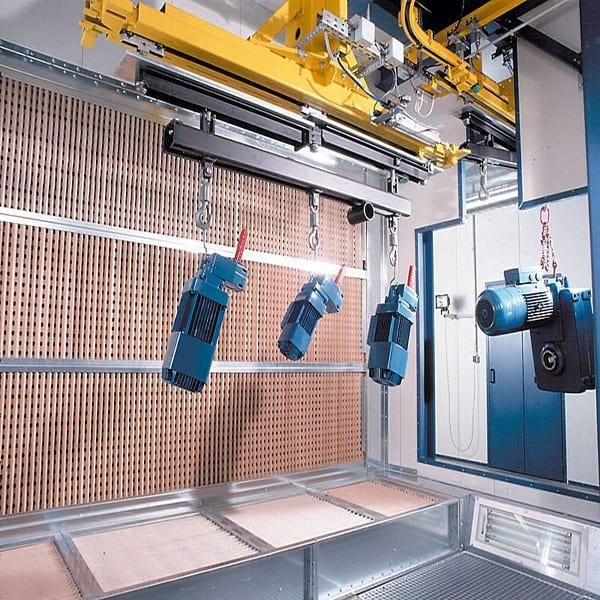

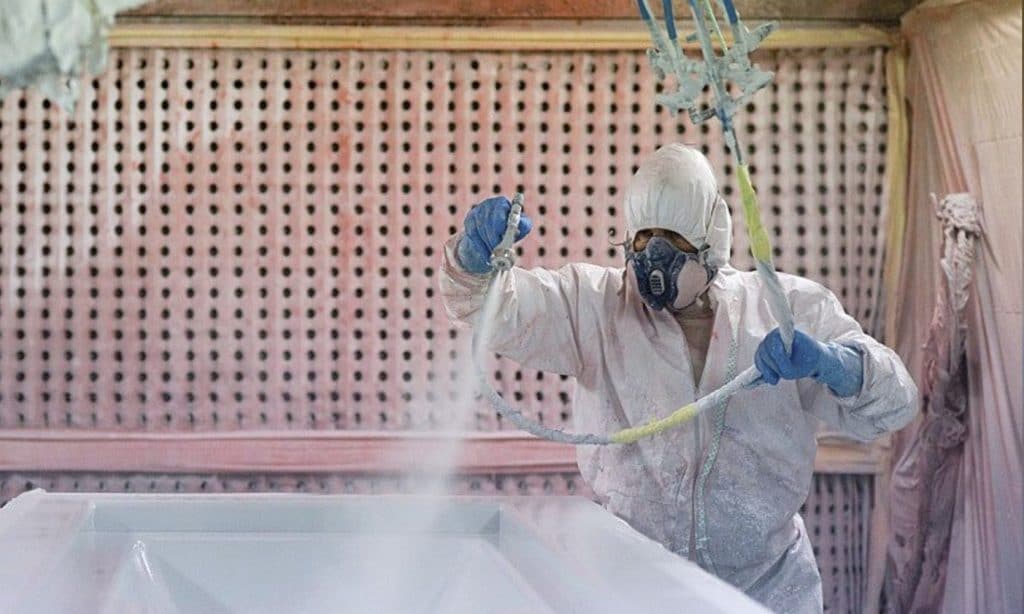

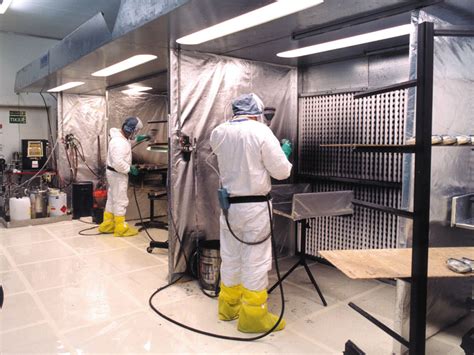

Unlike fiberglass, polyester, and paper mesh filters, The Accordion paint baffle loads overspray particles from the back, eliminating uneven airflow caused by particles face-loading on the front of the filter directly behind the point of spray. The accordion design separates the overspray particles from the airflow through the force of inertia and captures them deep inside holding pockets, eliminating particle migration. As a result, The Accordion can last 3-5x longer than other filter media.
The Accordion Standard
SINGLE STAGE FILTRATION
The Accordion Standard is the better baffle to arrest tacky, slow-to-dry, overspray such as high solid enamels, epoxy, asphalt, and varnish. This single-stage media tests at 98.3% paint arrestance efficiency and holds > 6 lbs of overspray per 20×20″ pad.
| PART NUMBER | DIMENSIONS (WxL) | BOX QUANTITY | |
|---|---|---|---|
| 36S | 36"x30' | 1 baffle/box | $58.50Add to cart |
| 1mS | 1x10m | 1 baffle/box | $63.00Add to cart |
| 20S | 20x20" | 40 baffles/box | $63.00Add to cart |
| 25S | 20x25" | 34 baffles/box | $63.00Add to cart |
The Accordion Custom Sizes
Standard filters are available in most any size, up to 1m wide x 30ft long. If you need a size not shown, or would prefer not to cut-to-length, contact us for a quote. Lead time for all custom sizes is 1 week by default (but will likely ship sooner).
| PART | DIMENSIONS (WxL) | BOX QUANTITY | |
|---|---|---|---|
| 17.625S | 17.625"x30' | 2 baffles/box | $63.00Add to cart |
| 1860S | 18"x60" | 12 baffles/box | $64.35Add to cart |
| 1872S | 18"x72" | 10 baffles/box | $64.35Add to cart |
| 19.625S | 19.625"x30' | 2 baffles/box | $67.50Add to cart |
| 19.75S | 19.75"x30' | 1 baffle/box | $67.50Add to cart |
| 2065S | 20"x65" | 12 baffles/box | $66.15Add to cart |
| 2078S | 20"x78" | 10 baffles/box | $66.15Add to cart |
| 22.5S | 22.5"x30' | 1 baffle/box | $63.00Add to cart |
| 2270S | 22"x70" | 5 baffles/box | $64.35Add to cart |
| 2540S | 25"x40" | 9 baffles/box | $64.35Add to cart |
| 2565S | 25"x65" | 5 baffles/box | $64.35Add to cart |
| 26.25S | 26.25"x30' | 1 baffle/box | $63.00Add to cart |
| 27S | 27"x30' | 1 baffle/box | $63.00Add to cart |
| 27.5S | 27.5"x30' | 1 baffle/box | $63.00Add to cart |
| 27596S | 27.5"x96" | 3 baffles/box | $64.35Add to cart |
| 27.75S | 27.75"x30' | 1 baffle/box | $63.00Add to cart |
| 28372S | 28.25"x72" | 5 baffles/box | $64.35Add to cart |
| 2972S | 29"x72" | 5 baffles/box | $63.00Add to cart |
| 30S | 30"x30' | 1 baffle/box | $63.00Add to cart |
| 3672S | 36"x72" | 5 baffles/box | $61.43Add to cart |
| 38.572S | 38.5"x72" | 5 baffles/box | $67.50Add to cart |
Note that some part numbers are sized “nominal” vs. “actual”. Click the link to learn which part numbers are “nominal”. If in doubt, send us the inside dimensions of your exhaust frame. The manufacturer will provide the correct part number/size filter.
The Accordion Poly-Back
TWO STAGE FILTRATION
The Poly-Back Baffle is best used with air dried liquid coatings such as enamels, primers, urethanes, and other flash dry coatings with fine particle size characteristics. The Accordion Poly-Back also serves as an excellent first and second stage pre-filter to any final stage media.
| PART NUMBER | DIMENSIONS (WxL) | QUANTITY/BOX | |
|---|---|---|---|
| 36P | 3x30' | 1 baffle/box | $70.00Add to cart |
| 1mP | 1x8m | 1 baffle/box | $72.00Add to cart |
| 2060P | 20x60" | 5 baffles/box | $69.00Add to cart |
| 20P | 20x20" | 28 baffles/box | $64.00Add to cart |
| 25P | 20x25" | 24 baffles/box | $65.00Add to cart |
*The 2060P may become back-ordered until the next scheduled production run if less than a skid. A minimum one skid order is required for most custom poly products. Check with us for current availability and/or minimum requirement.

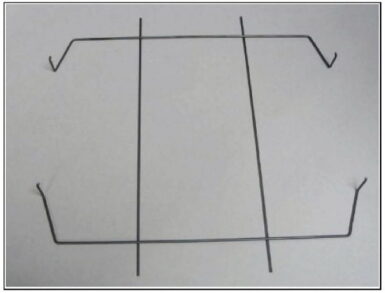

The Accordion Baffle Support
PAD SIZE FILTER SUPPORT
Accordion Baffle Supports are used in 20×20″ and 20×25″ cell frame openings to hold the paint baffle open. No tool installation, just slip the supports in and out of the exhaust cell opening.
Baffle supports are for use in cell frames to secure The Accordion filter to the frame.
- Supports are available in 20×20″ and 20×25″ sizes.
- Simple installation – no tools required.
Straight tines slip behind the existing cell frame.
Done! - Tuck Accordion Filter end pleats behind the bent tines.
- Supports can be turned either direction to fit your frame.
A freight quote is required.
Send us the quantity of supports you need and delivery address. We will contact the manufacturer for the freight cost.
BS20: 20×20″ Accordion Baffle Support $6.00 ea.
BS25: 20×25″ Accordion Baffle Support $6.00 ea.
“The Accordion is not only Made in the USA, but 100% American Owned & Operated. AFX Manufacturing is proud to produce the ONLY accordion overspray collection filter made in the USA.”
